Microsoft Entra ID

This guide will walk you through configuring pfSense to use Microsoft Entra ID for webConfigurator authentication via SAML 2.0. This allows your users to log into pfSense using Microsoft Entra, centralizing access and enabling features like MFA.

Prerequisites

A pfSense instance with the SAML2 package installed
A Microsoft Entra account with admin privileges

Step 1: Register a new application in Microsoft Entra

After logging into your Microsoft Entra admin center, navigate to Entra ID > Enterprise apps and click the New application button. Then select the New application option.

msentra_create_new_app

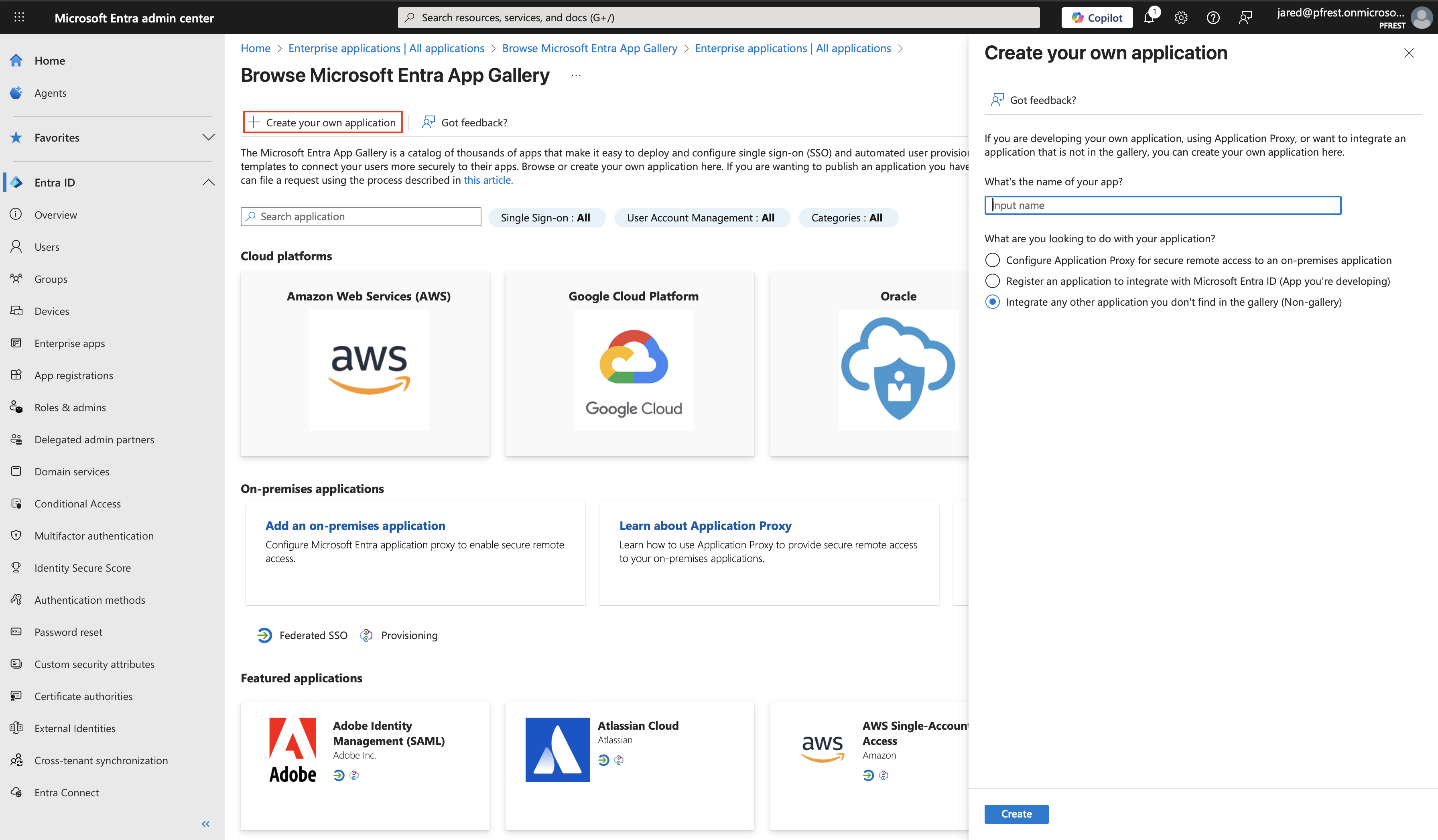

On the next page, click the Create your own application option at the top. Give your application a name (e.g., "pfSense") and select the Integrate any other application you don't find in the gallery (Non-gallery) option.

msentra_create_your_own_app

Step 2: Configure SAML settings

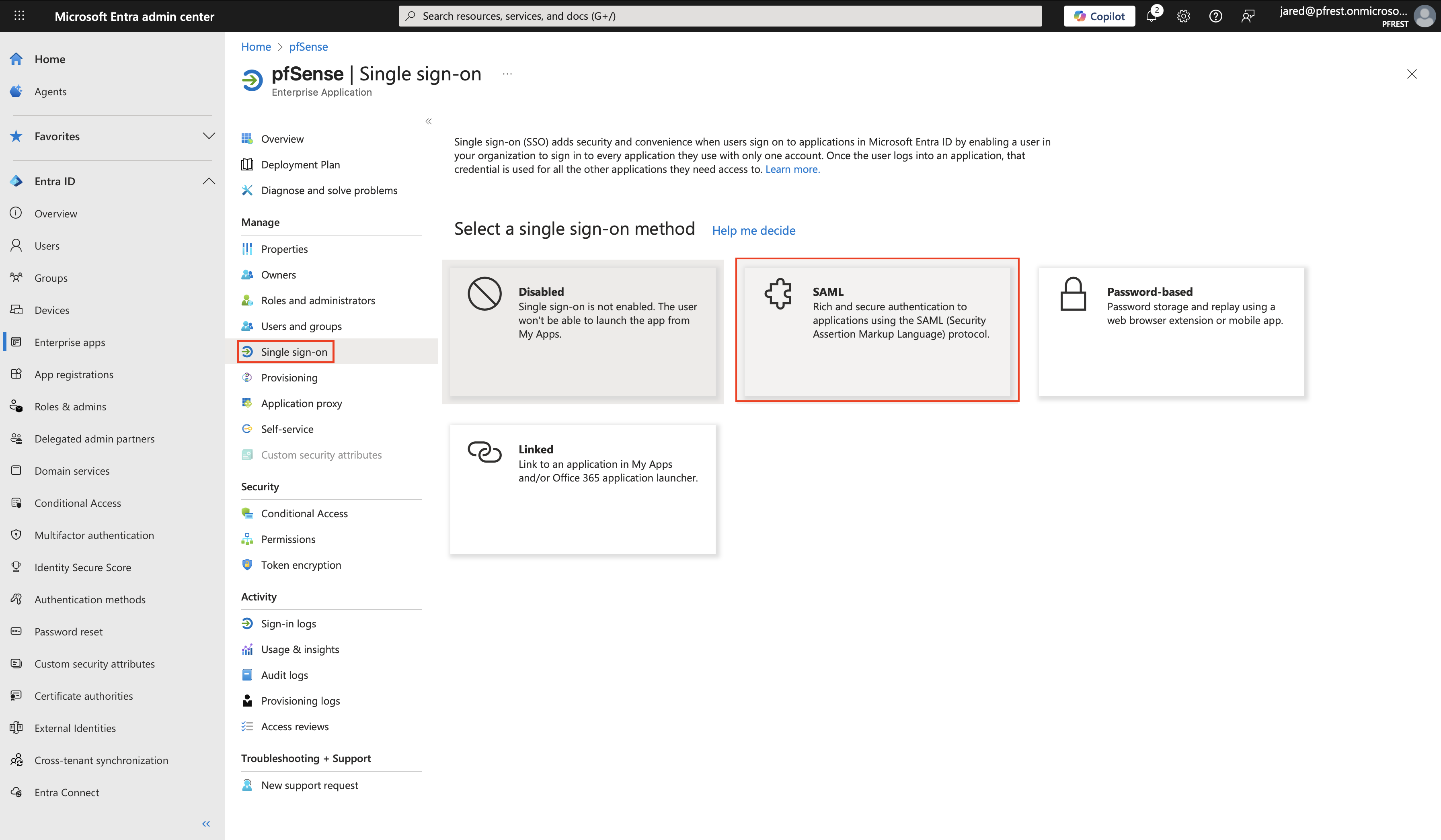

Once the application is created, navigate to the Single Sign-on section and select the SAML option.

msentra_select_saml_app

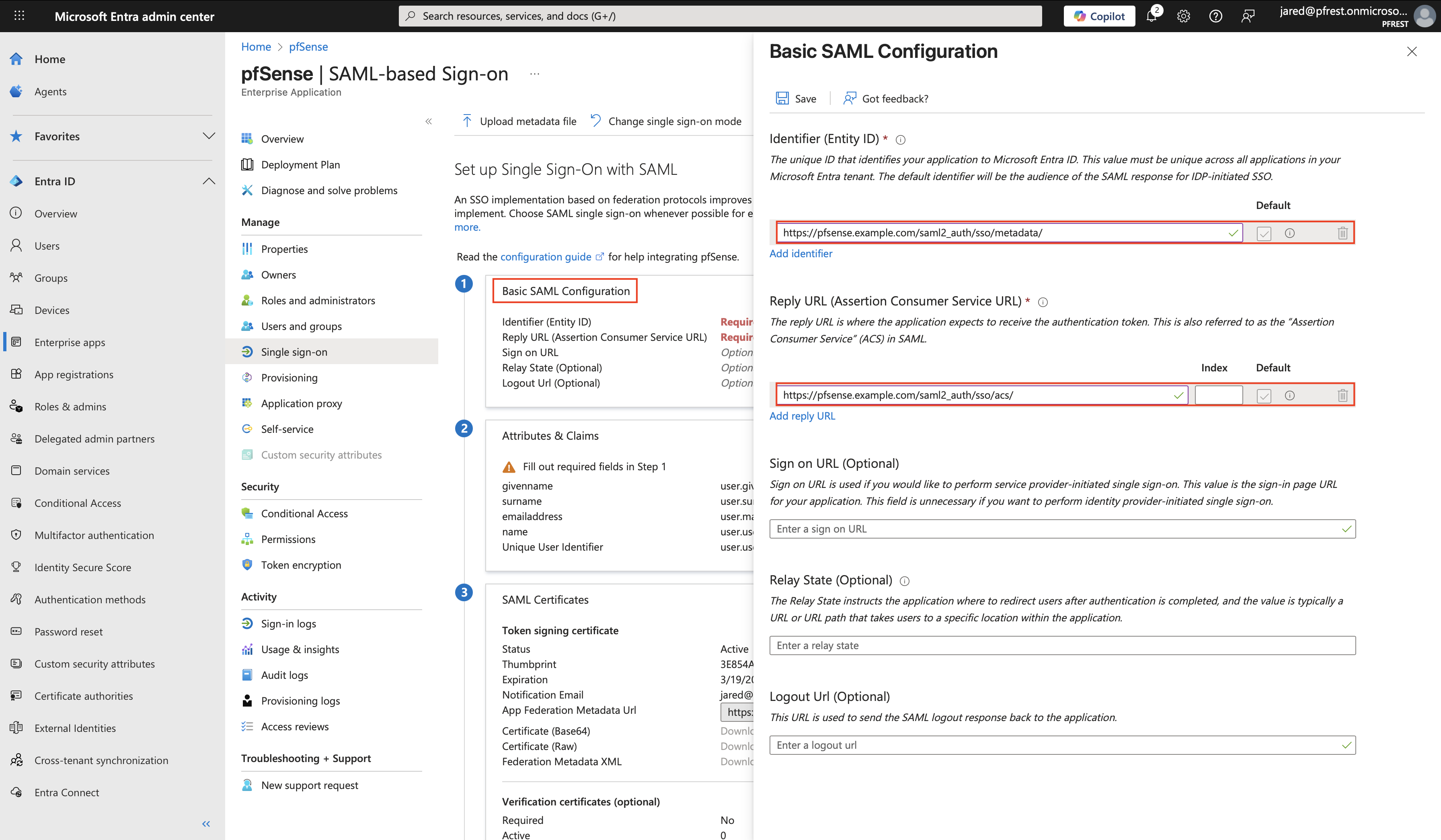

In the Basic SAML Configuration section, click the Edit button to configure the following settings:

Identifier (Entity ID): https://<pfsense_ip_or_hostname>/saml2_auth/sso/metadata/
Reply URL (Assertion Consumer Service URL): https://<pfsense_ip_or_hostname>/saml2_auth/sso/acs/

msentra_set_basic_saml_config

Step 3: Configure group claims

Note

If you are using user-based privilege mapping, you can skip this step.

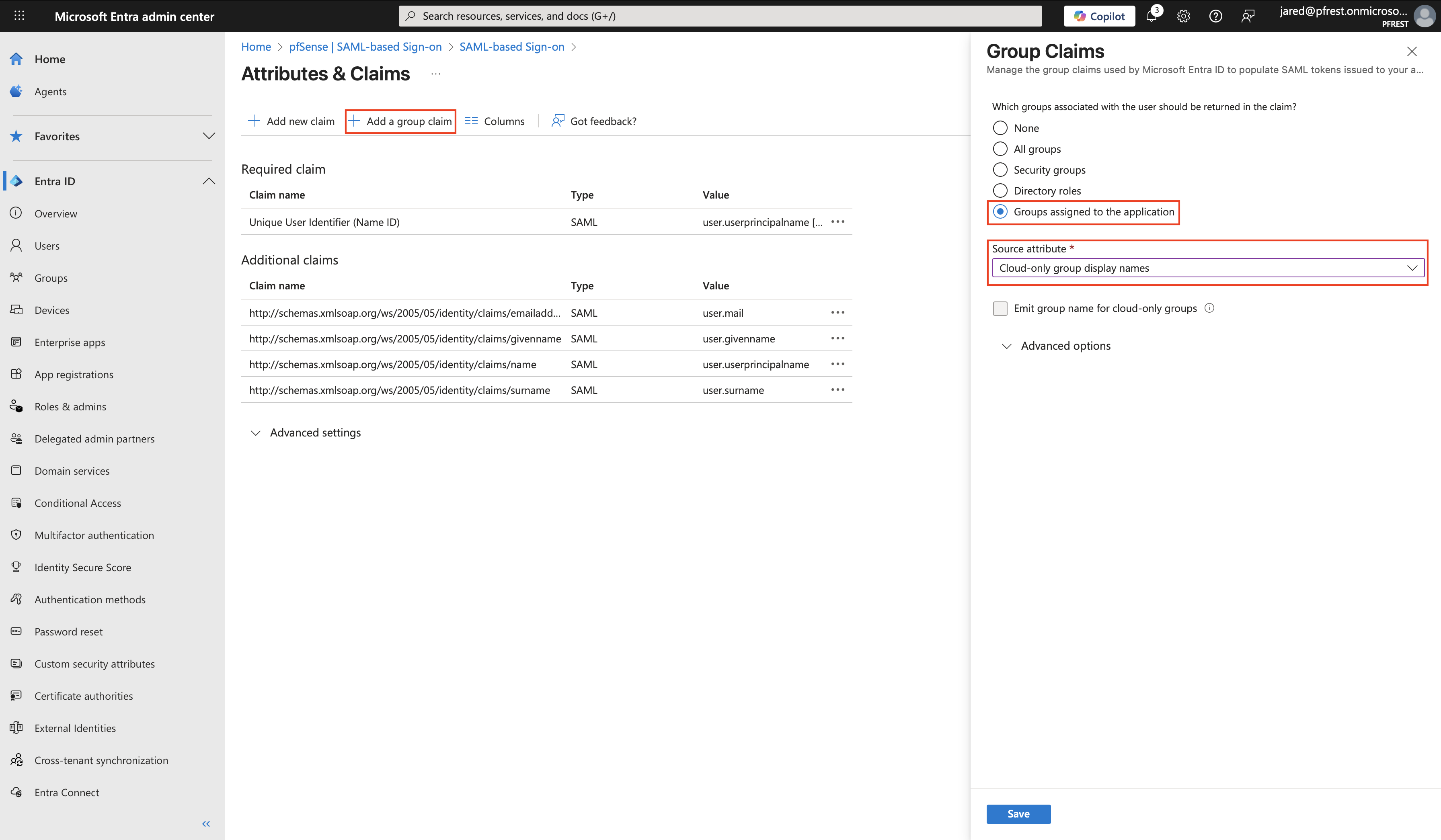

If you are planning on using group-based privilege mapping, you must configure a group claim to return the SSO user's group memberships. To do this, scroll down to the Attributes & Claims section and click the Edit button. On the claims page, click the Add a group claim button and select the Groups assigned to the application option. Under Source attribute, select the option that best fits your needs and environment. In this example, we will use the Cloud-only group display names option as we are only using cloud-based groups, not synchronized on-premises AD groups.

msentra_add_group_claim

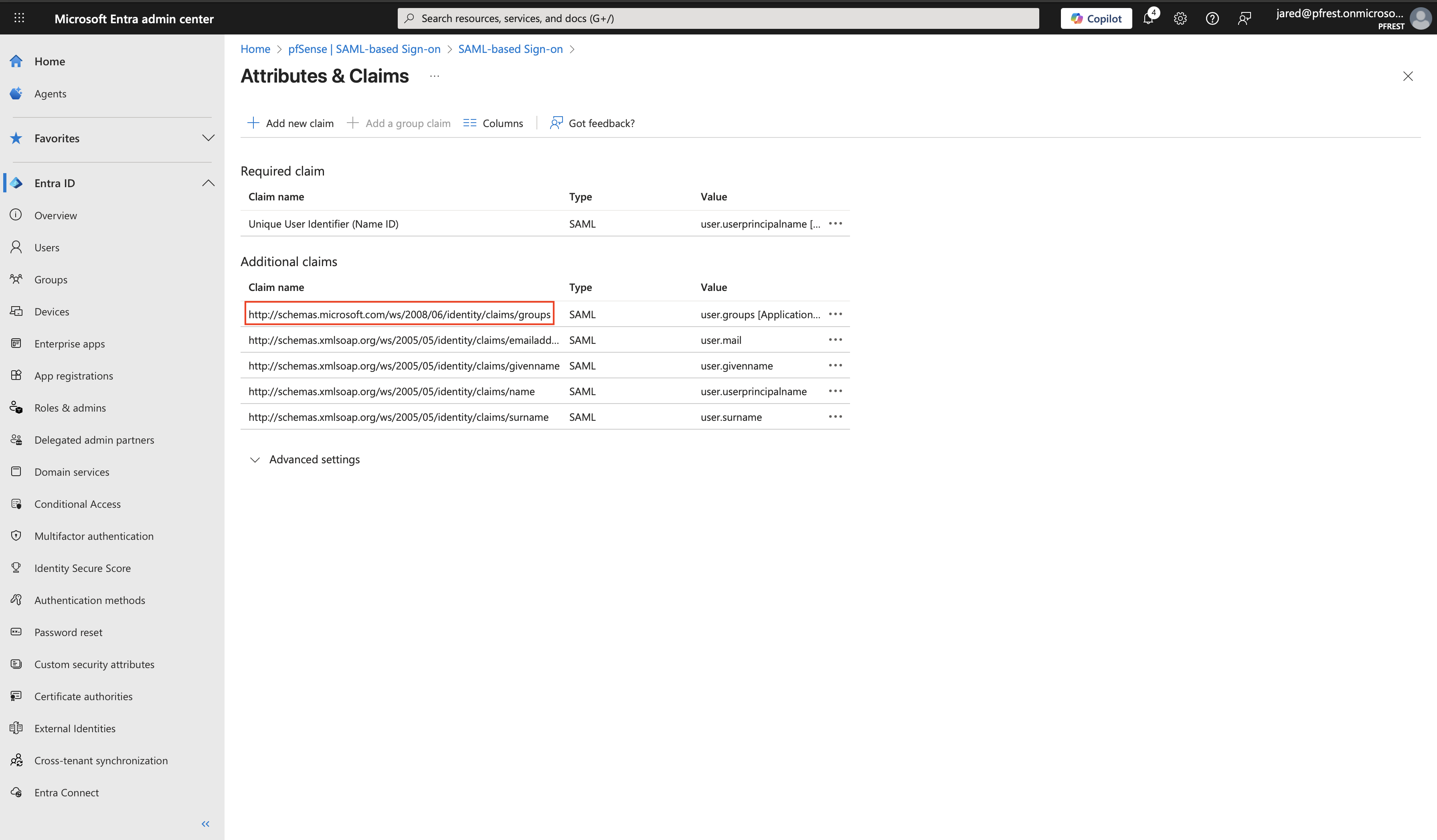

Once the claim has been added, make note of the Claim name as you will need it later when configuring pfSense.

msentra_get_group_claim_name

Step 4: Assign users or groups to the application

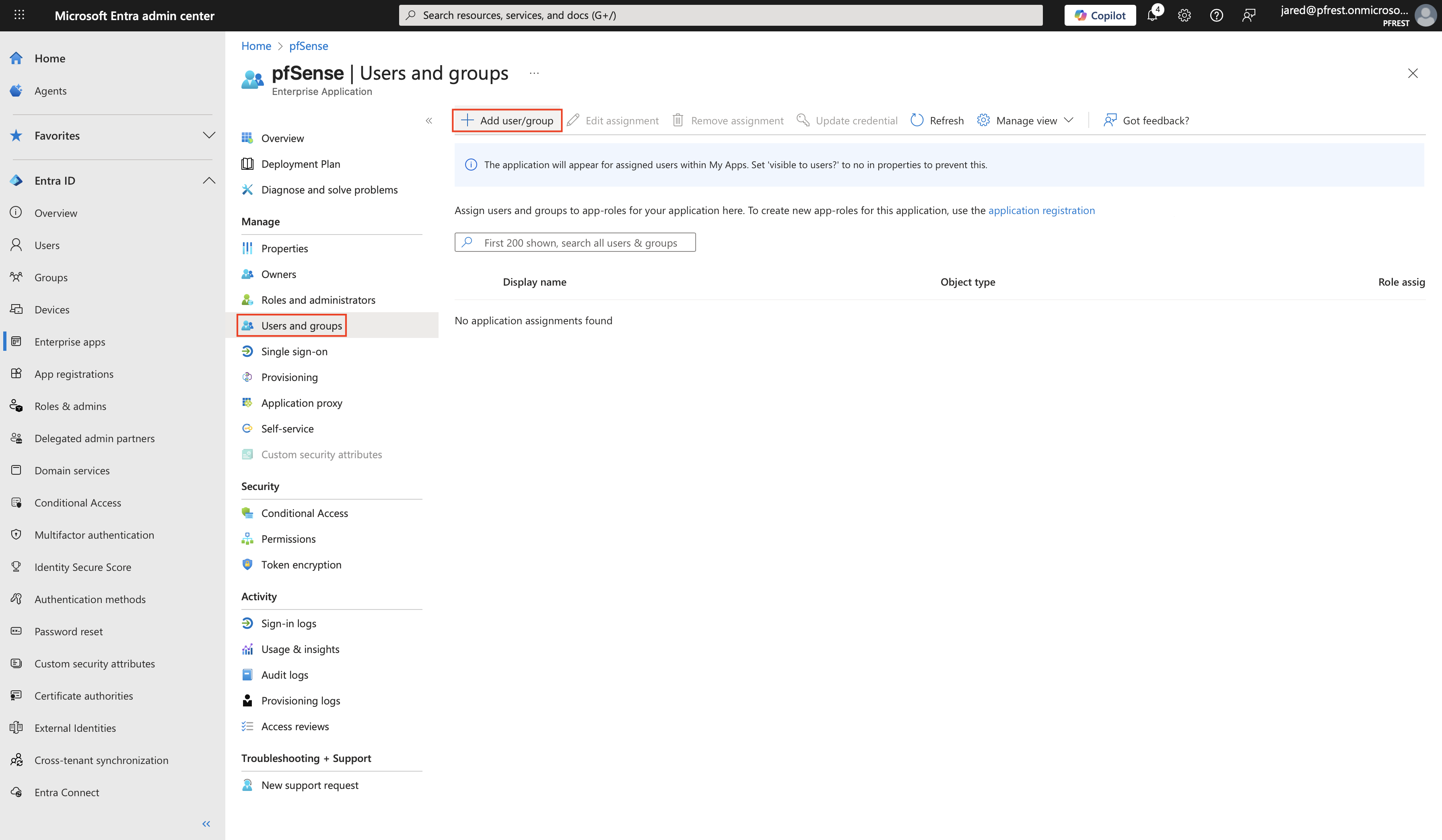

Click the Users and groups section on the left-hand side, then click the Add user/group button to assign users or groups to the application so they can authenticate to pfSense.

msentra_assign_users_and_groups

Step 5: Obtain Microsoft Entra metadata

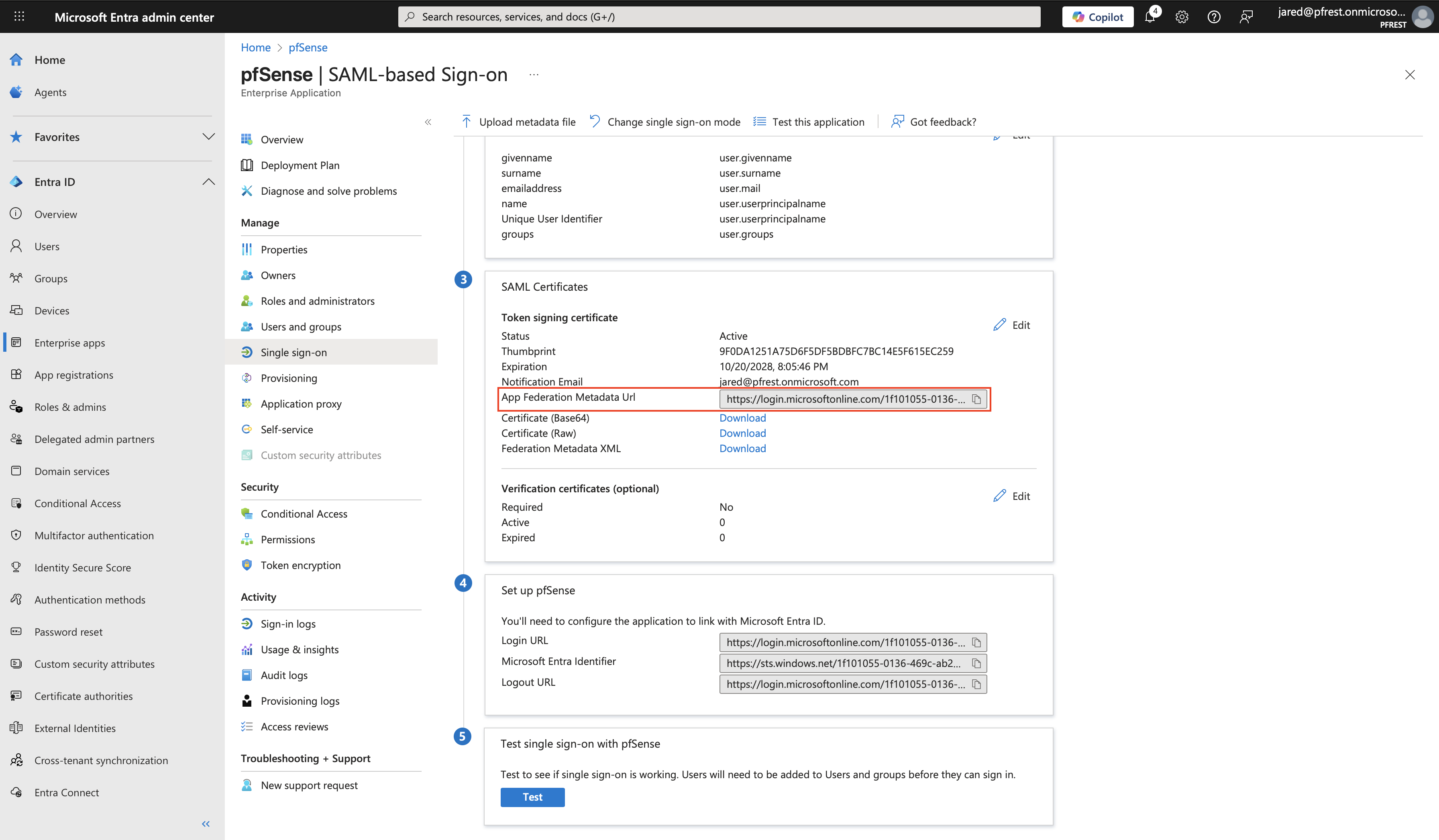

Next, you will need to obtain the Microsoft Entra SAML metadata to configure pfSense. Navigate back to the Single Sign-on section of the application. If you are planning on using the IdP metadata URL for auto-configuration in pfSense, make note of the App Federation Metadata Url under the SAML Certificates section.

msentra_get_idp_metadata_url

If you prefer to manually configure the IdP's metadata in pfSense, click the Download link next to the Certificate (Base64) option to download the IdP signing certificate. Then, make note of the Login URL and Microsoft Entra Identifier values as you will need them to complete the manual configuration in pfSense.

msentra_get_idp_metadata_manually

Step 6: Configure SAML2 settings in pfSense

Now that you have the necessary information from Microsoft Entra, sign in to your pfSense instance and navigate to System > SAML2. Ensure the following fields are set:

Enable: Checked
Filter Email Usernames: Checked
Identity Provider Metadata URL: The App Federation Metadata Url from Step 5 if using auto-configuration.
Identity Provider Single Sign-On URL: The Login URL from Step 5 if not using a metadata URL.
Identity Provider Entity ID: The Microsoft Entra Identifier from Step 5 if not using a metadata URL.
Identity Provider Groups Attribute: The Claim name from Step 3 if using group-based privilege mapping.
Identity Provider x509 Certificate: The contents of the downloaded Certificate (Base64) file from Step 5 if not using a metadata URL.
SP Base URL: https://<PFSENSE IP OR FQDN>

msentra_pfsense_saml2_settings

Step 7: Create users or groups in pfSense

If you are using group-based privilege mapping, navigate to System > User Manager > Groups and create remote-scoped groups that match those in Microsoft Entra. Ensure the group names match exactly, including case sensitivity. Then assign the desired privileges to each group.

pfsense_create_user_group

If you are using user-based privilege mapping, navigate to System > User Manager> Users and create local users that match the usernames in Microsoft Entra exactly. Assign the desired privileges to each user.

pfsense_create_user

Tip

If you selected a different source attribute for group claims in Step 3, ensure that the group names in pfSense match the values being sent. In some cases, Microsoft Entra may send group IDs instead of group names.

Step 8: Test the configuration

On the pfSense login page, there should now be a Sign In with SSO link below the standard login form. Click this link to be redirected to Microsoft Entra for authentication. Assuming everything is configured correctly, you should be redirected back to pfSense and be logged in. If you encounter issues, you can enable the Debug option on the System > SAML2 page to enable more detailed logging. The SAML2 logs can be found under Status > System Logs > Packages > SAML2.

_{Last updated: 2025-10-20}
