Okta

This guide will walk you through configuring pfSense to use Okta for webConfigurator authentication via SAML 2.0. This allows your users to log into pfSense using Okta, centralizing access and enabling features like MFA.

Prerequisites

A pfSense instance with the SAML2 package installed
An Okta account with admin privileges

Step 1: Create a new application in Okta

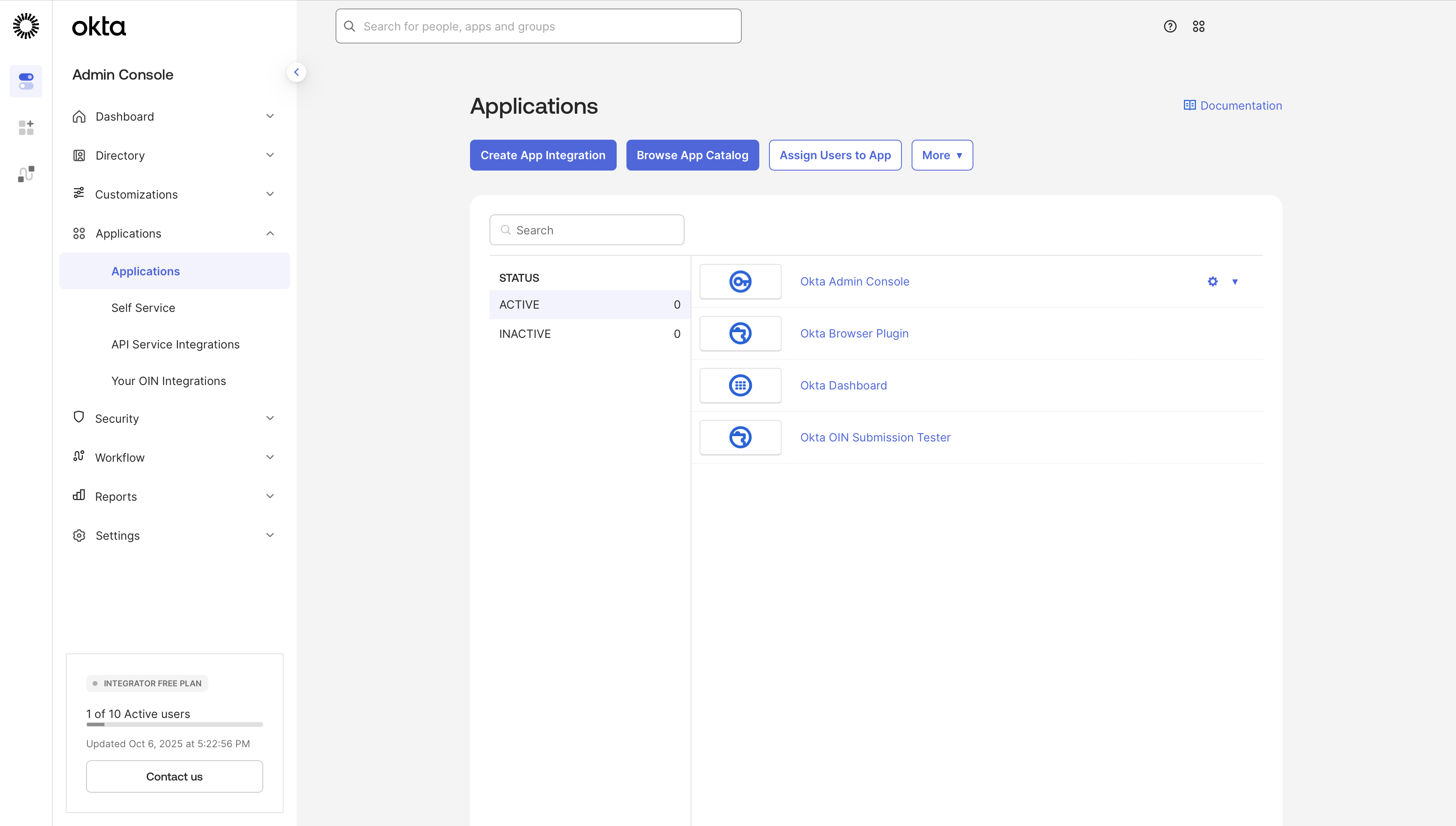

After logging into your Okta admin console, navigate to Applications > Applications and click Create App Integration.

okta_create_app

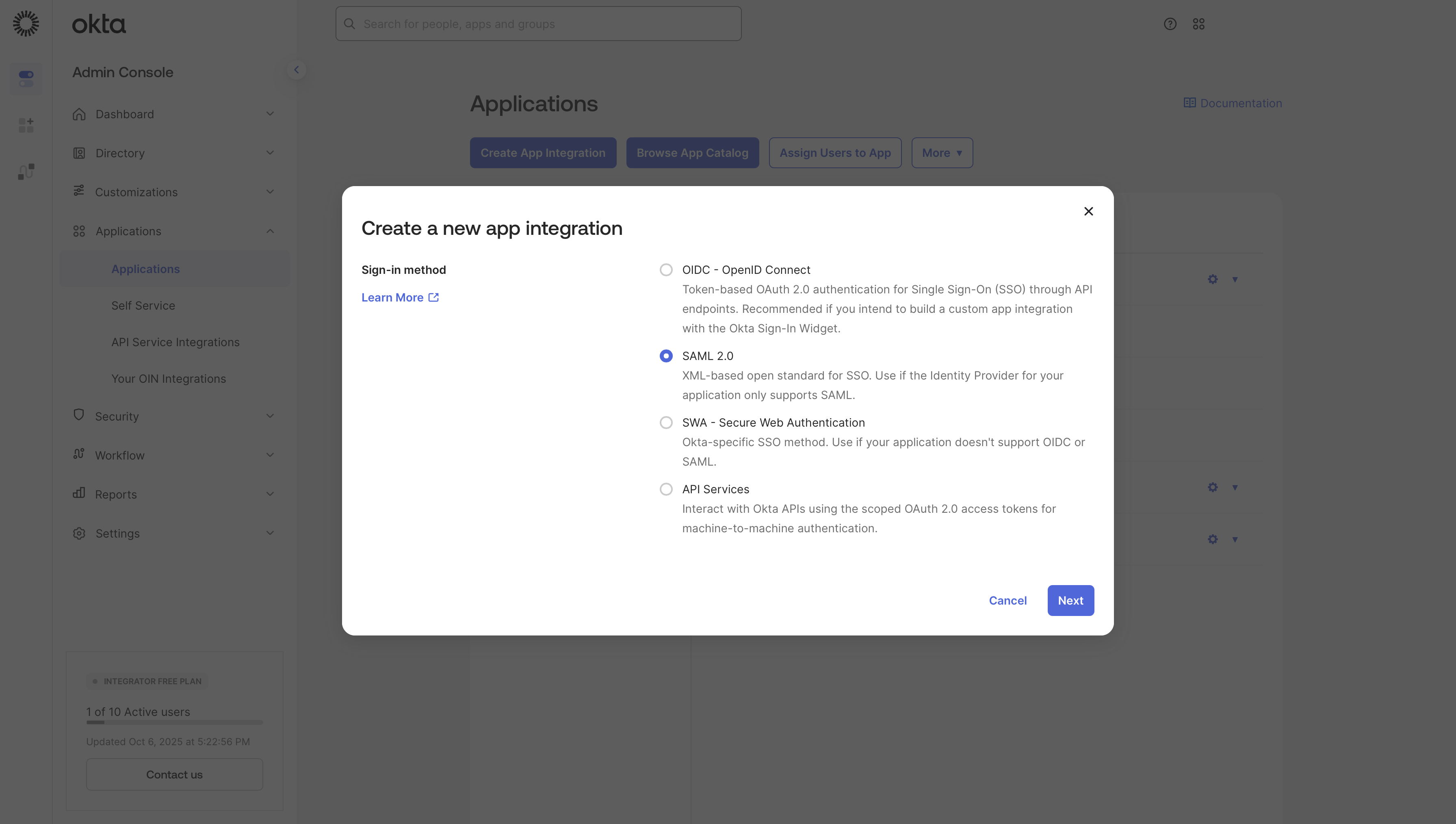

When prompted, select SAML 2.0 as the sign-in method and click Next.

okta_create_app_method

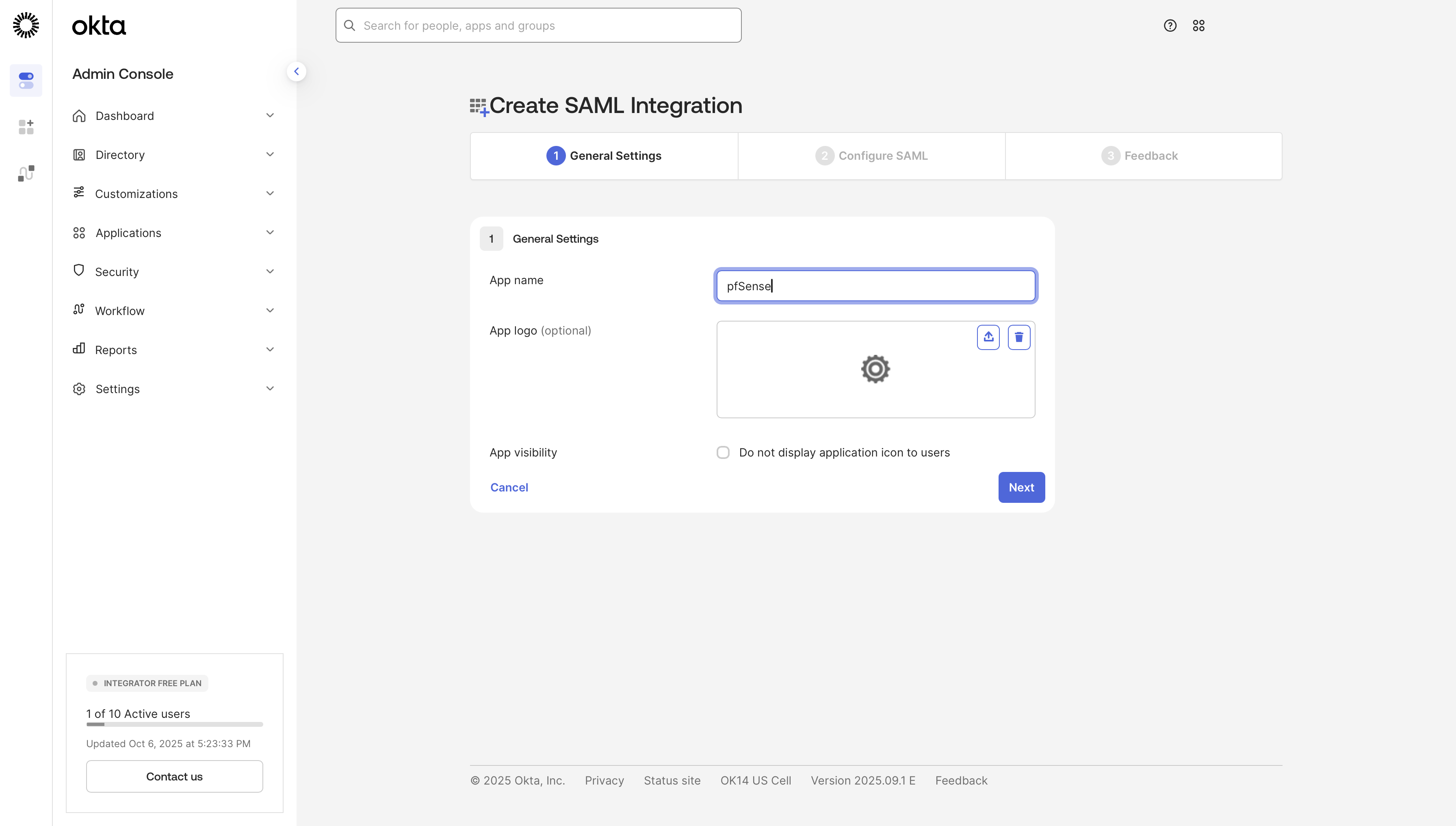

Give your application a name (e.g., "pfSense") and optionally upload a logo. Click Next to proceed.

okta_create_app_name

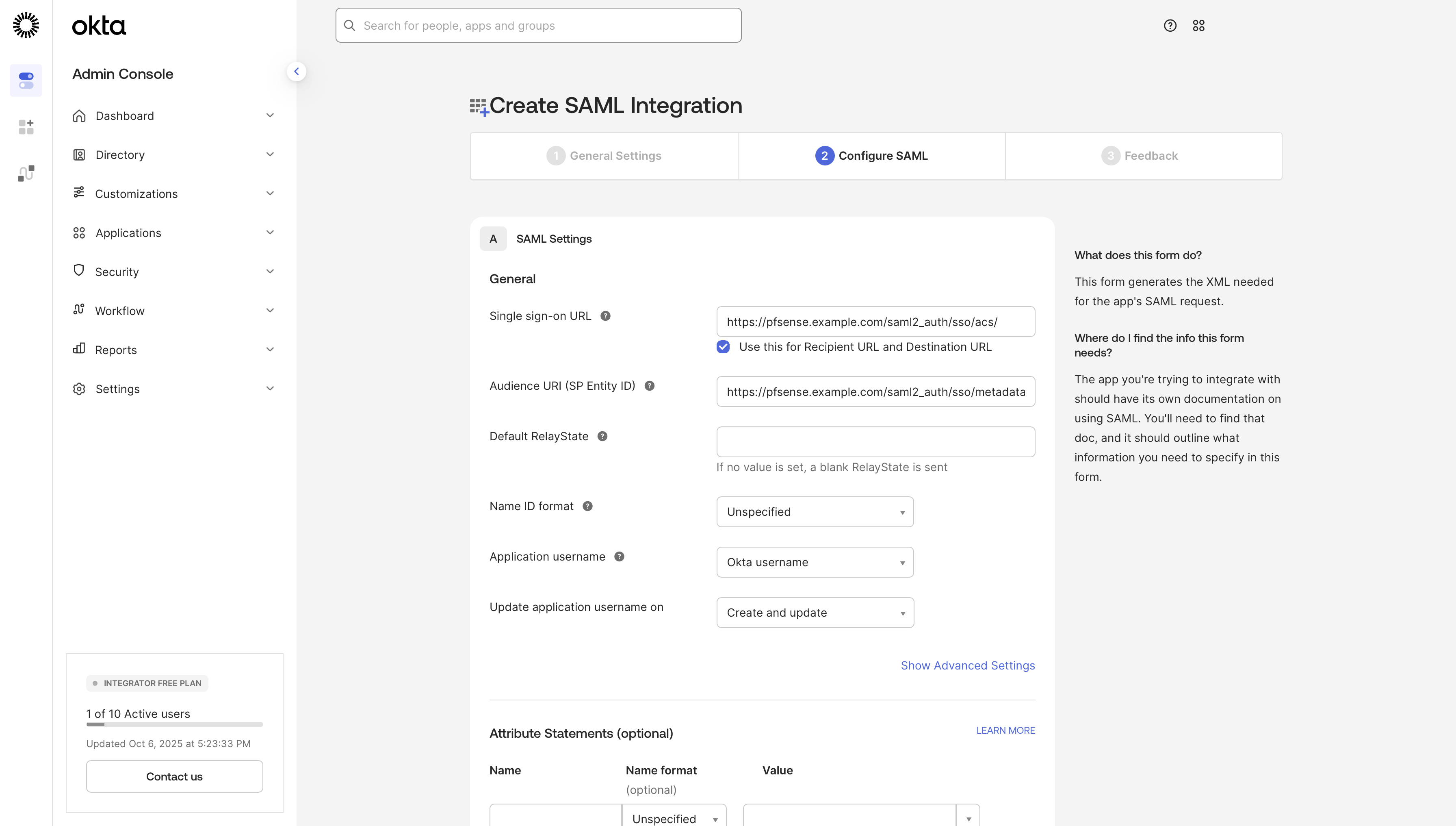

On the next screen, you will configure the SAML settings to direct Okta to your pfSense instance. Set the following fields:

Single sign-on URL: https://<PFSENSE IP OR FQDN>/saml2_auth/sso/acs/
Audience URI (SP Entity ID): https://<PFSENSE IP OR FQDN>/saml2_auth/sso/metadata/

okta_create_app_settings

Important

You must ensure the Audience URI (SP Entity ID) matches the SP Entity ID field in pfSense exactly. If you change the SP Entity ID in pfSense, you must also update it here in Okta.

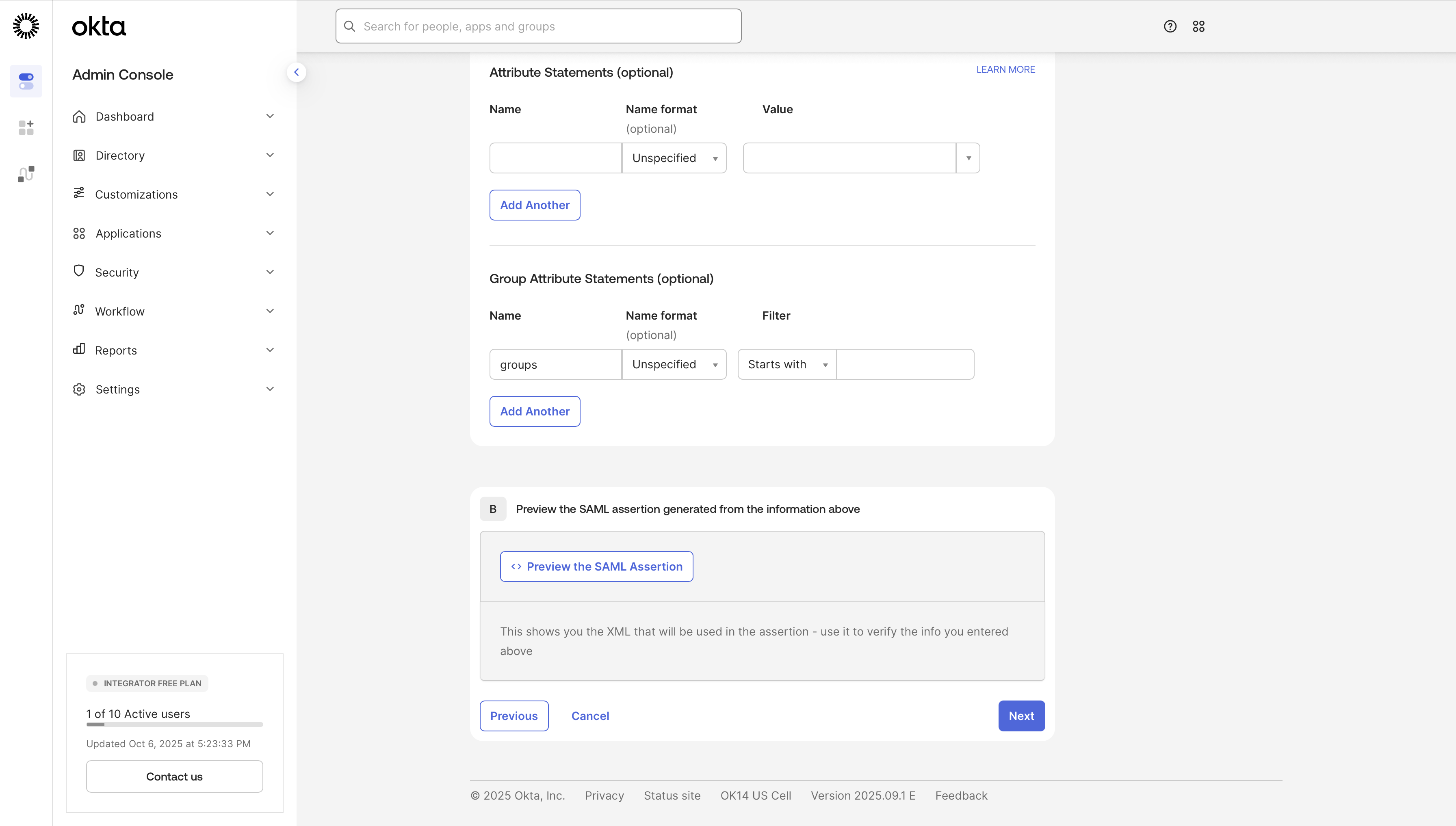

If you are not planning on utilizing group-based privilege mapping, you can skip to Step 3. Otherwise, scroll down to the Group Attribute Statements section and add a new attribute with the following values:

Name: groups
Name format: Unspecified
Filter: Choose the filter that best suits your requirements. If you want to send all groups the user is a member of, select Matches regex and enter .*. If you want to only send specific groups, choose Starts with or Equals and enter the appropriate value.

okta_create_app_groups_attr

Tip

You can change the group attribute name from groups to something else if needed. If you do, make sure to update the IdP Groups Attribute field in pfSense accordingly.

Step 2: Assign users or groups to the application

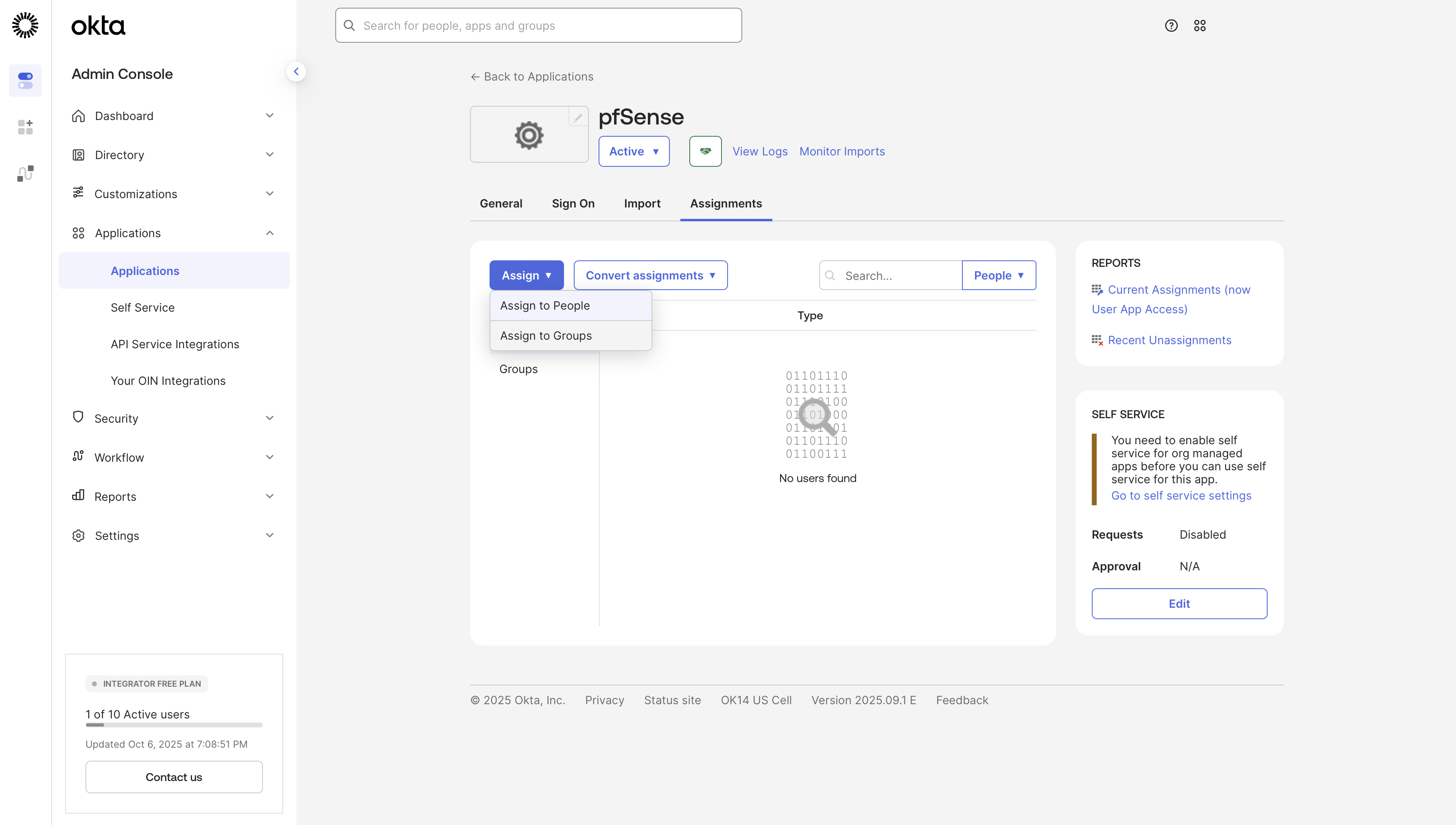

Click Next and proceed through the rest of the setup. Once the application is created, you will need to assign users or groups to the application so they can authenticate to pfSense. Click on the Assignments tab and then click Assign > Assign to People or Assign to Groups as needed.

okta_assign_app_groups_and_users

Tip

If you are using group-based privilege mapping, it is recommended to assign groups to the application rather than individual users. This ensures that any user added to the group in Okta will automatically gain access to pfSense.

Step 3: Retrieve Okta metadata

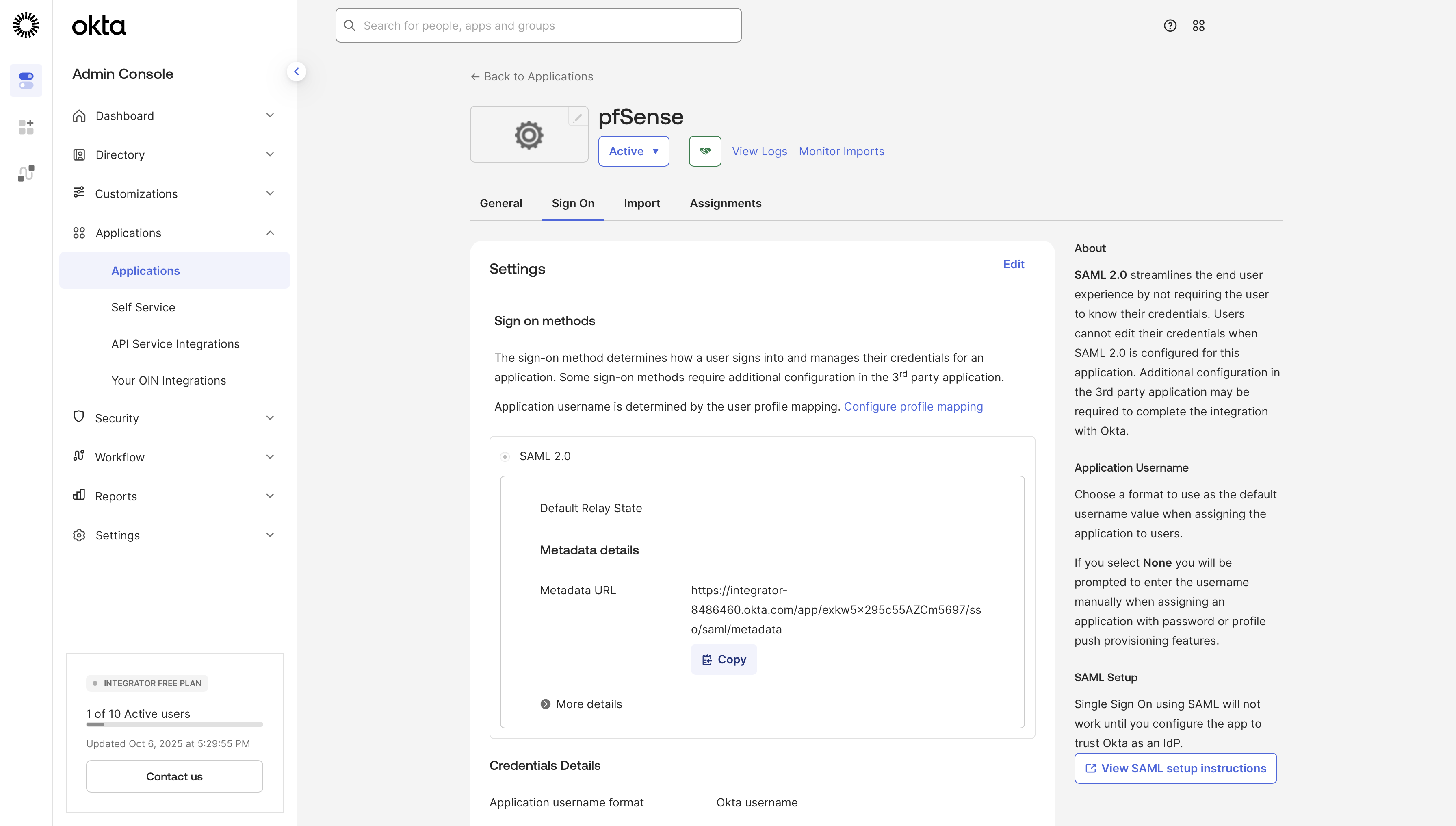

Next, you will need to retrieve some metadata from Okta to configure on pfSense. If you are planning on using a metadata URL for auto-configuration, navigate to the Sign On tab of your application and find the Metadata URL link. Keep this URL handy as you will need it in the next step.

okta_idp_metadata_url

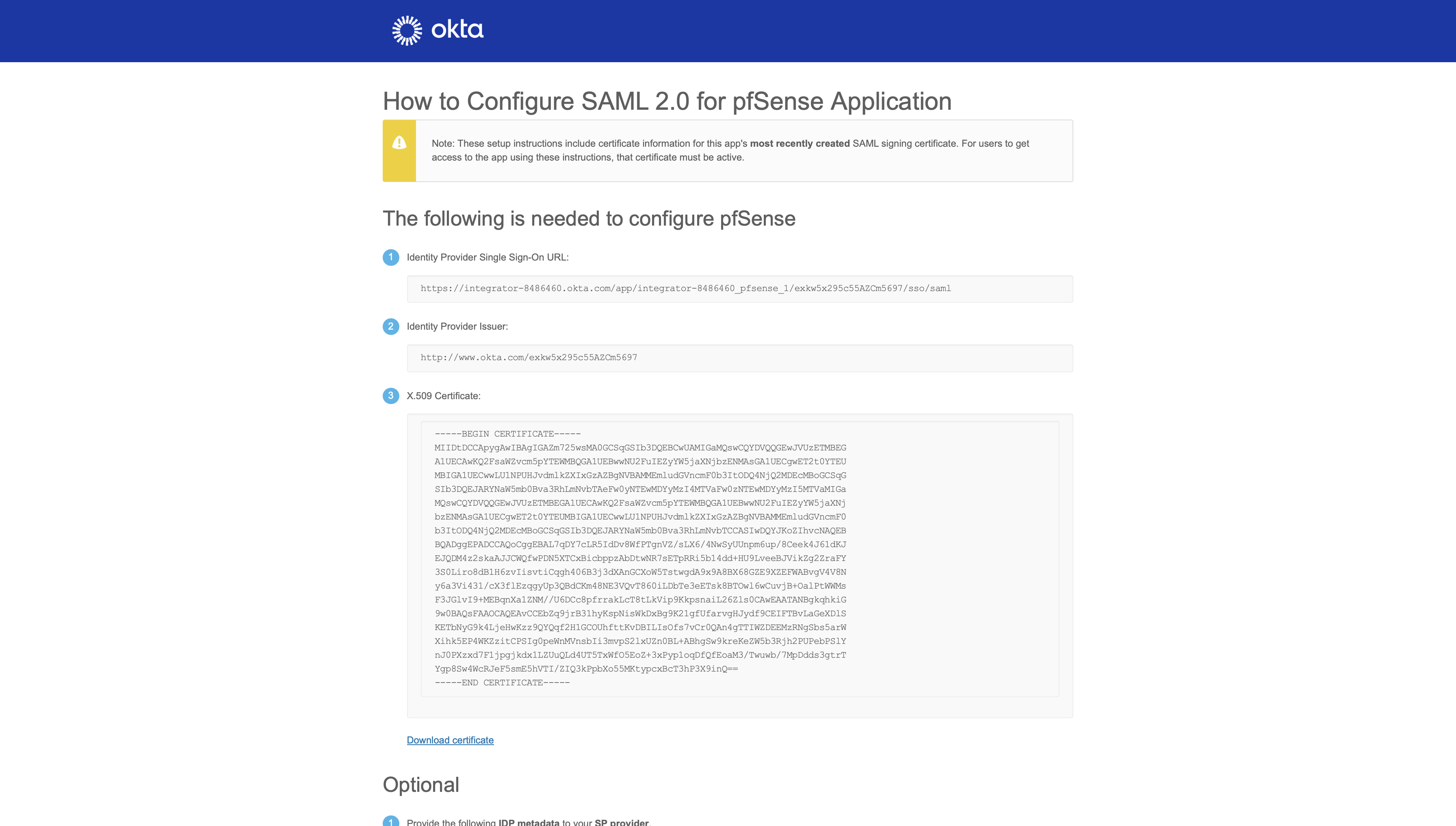

If you are not using a metadata URL, you can find the individual metadata values you will need by clicking the View Setup Instructions link on the Sign On tab. This should bring you to a page that displays the Identity Provider Single Sign-On URL, Identity Provider Issuer, and the X.509 Certificate. Have these values ready for the next step.

okta_idp_manual_conf

Step 4: Configure SAML2 settings in pfSense

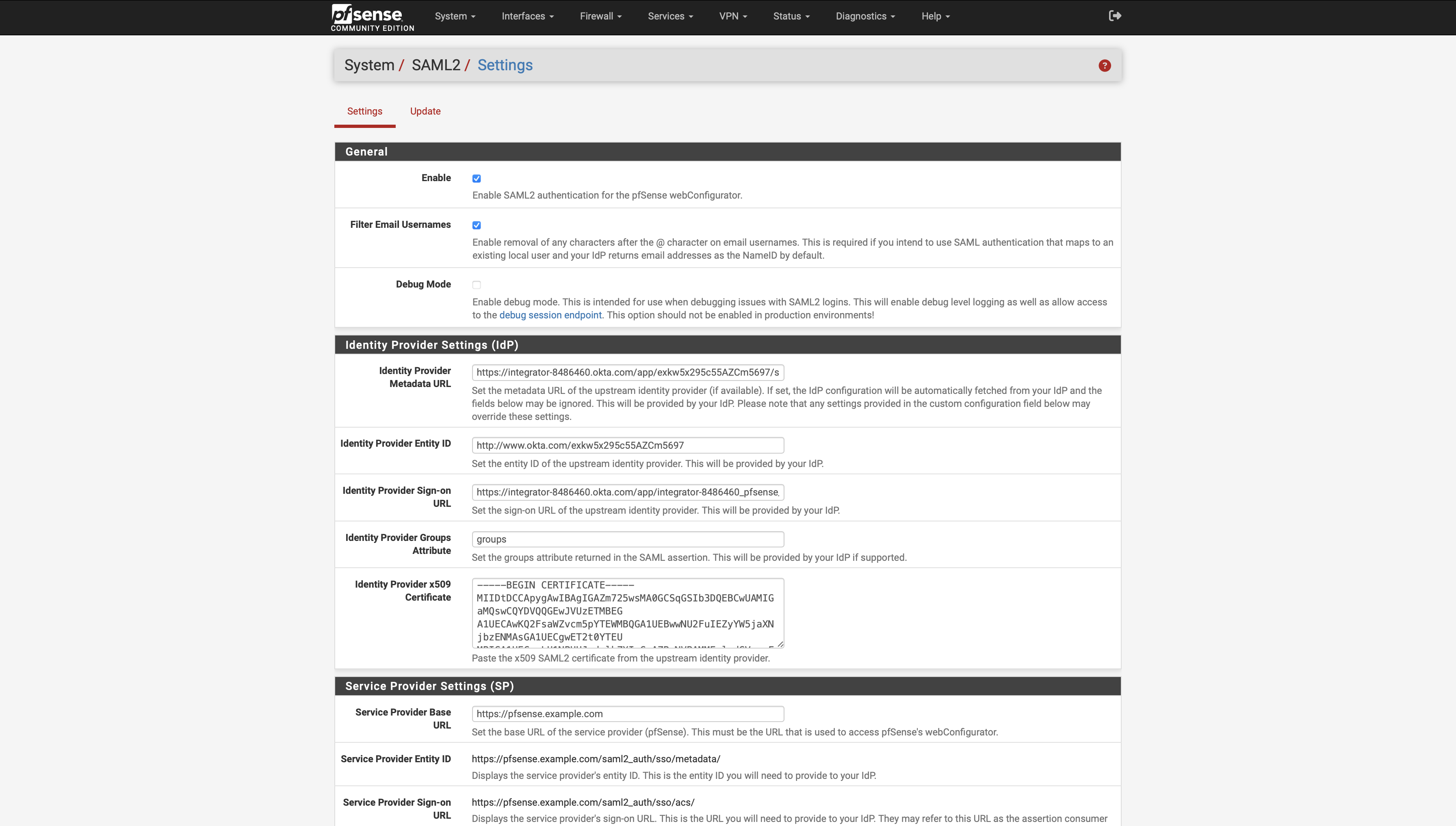

Now that you have the necessary information from Okta, sign in to your pfSense instance and navigate to System > SAML2. Ensure the following fields are set:

Enable: Checked
Filter Email Usernames: Checked
Identity Provider Metadata URL: The Metadata URL from Step 3 if using auto-configuration.
Identity Provider Single Sign-On URL: The Identity Provider Sign-On URL from Step 3 if not using a metadata URL.
Identity Provider Entity ID: The Identity Provider Issuer from Step 3 if not using a metadata URL.
Identity Provider x509 Certificate: The X.509 Certificate from Step 3 if not using a metadata URL.
SP Base URL: https://<PFSENSE IP OR FQDN>

okta_pfsense_saml2_settings

Click Save at the bottom of the page to apply your changes.

Step 5: Create users or groups in pfSense

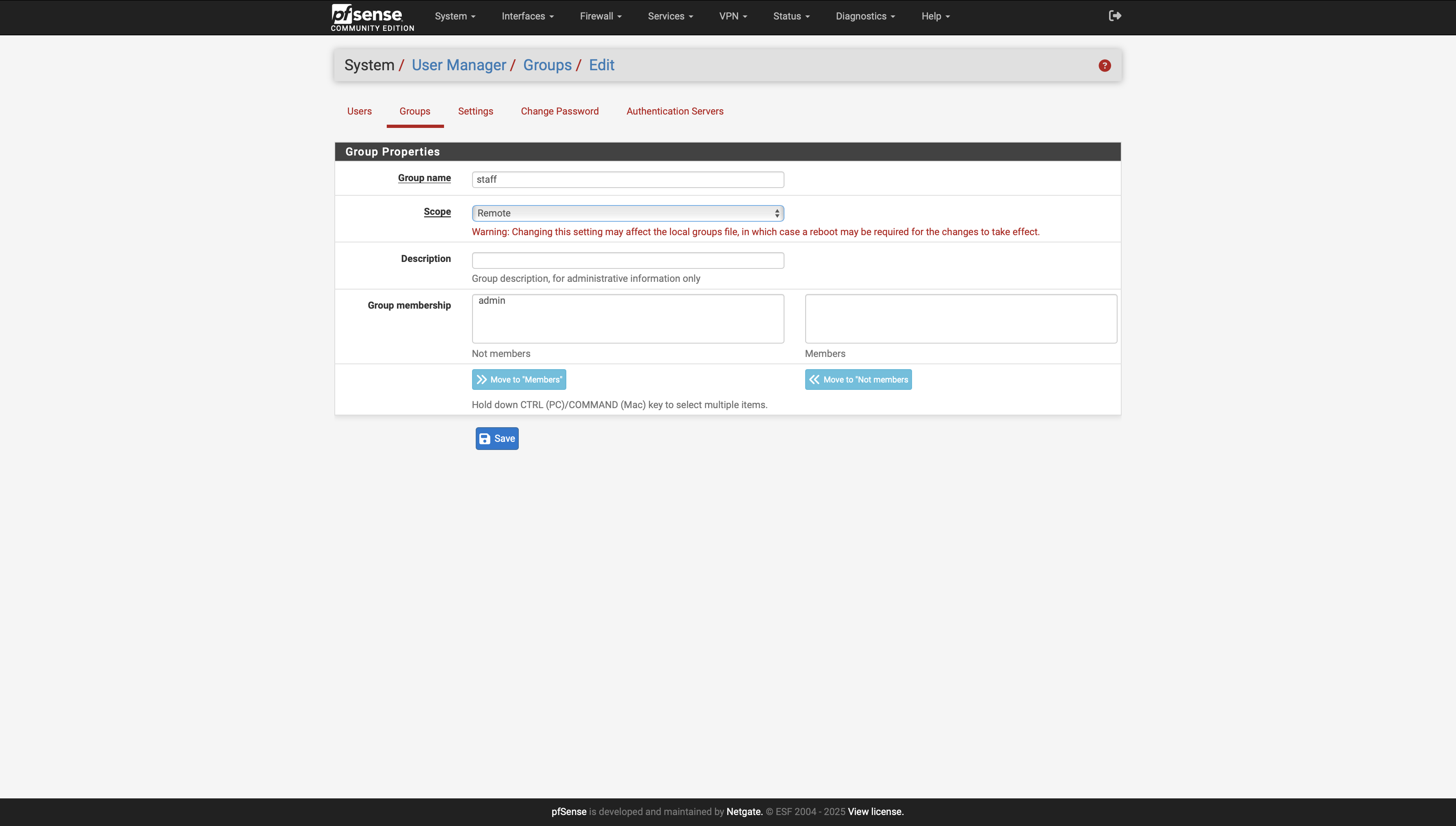

If you are using group-based privilege mapping, navigate to System > User Manager > Groups and create remote-scoped groups that match those in Okta. Ensure the group names match exactly, including case sensitivity. Then assign the desired privileges to each group.

pfsense_create_user_group

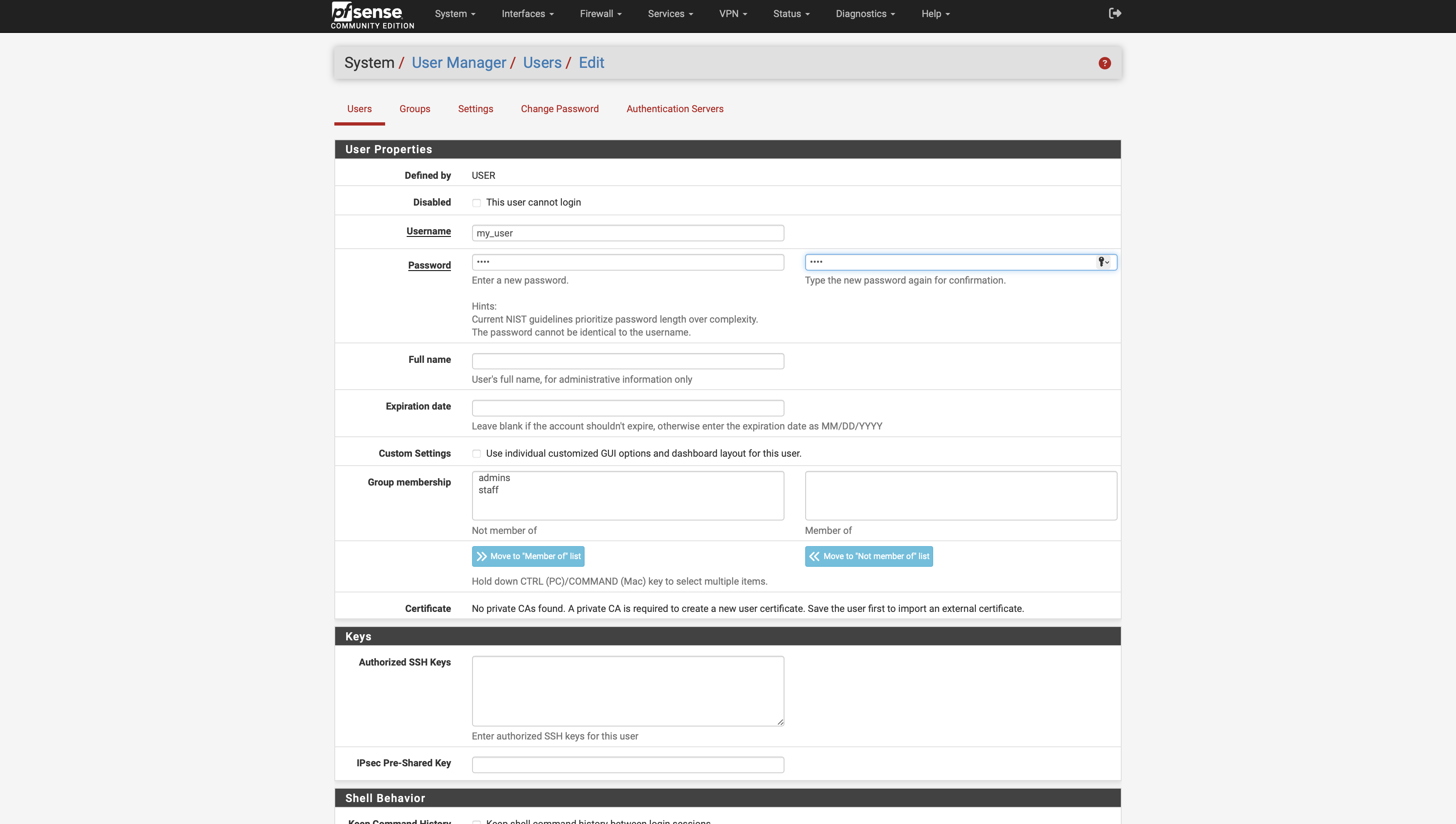

If you are using user-based privilege mapping, navigate to System > User Manager> Users and create local users that match the usernames in Okta exactly. Assign the desired privileges to each user.

pfsense_create_user

Step 6: Test the configuration

On the pfSense login page, there should now be a Sign In with SSO link below the standard login form. Click this link to be redirected to Okta for authentication. Assuming everything is configured correctly, you should be redirected back to pfSense and be logged in. If you encounter issues, you can enable the Debug option on the System > SAML2 page to enable more detailed logging. The SAML2 logs can be found under Status > System Logs > Packages > SAML2.

_{Last updated: 2025-10-06}
